Cladding Profiles
Offering the full complement in roofing and cladding sheets from traditional trapezoidal, sinusoidal to 3 different tile effect roof sheets in Plastisol, White liner, polyester, Polyurethane, Galvanised, PVDF, Prisma and Aluzinc, we have your roof covered. Sheets can be curved and crimped as required and can also have anti-condensation reverse. A full complement of gutters and flashings are also available manufactured in house and can be delivered nationwide.
Contact Us Now
Please contact us for advice and assistance, our dedicated team will assist with any enquiries you may have.
Telephone: 01562 823451
Email: enquiries@metrac.co.uk
Cladding Profiles
Offering the full complement in roofing and cladding sheets from traditional trapezoidal, sinusoidal to 3 different tile effect roof sheets in Plastisol, White liner, polyester, Polyurethane, Galvanised, PVDF, Prisma and Aluzinc, we have your roof covered. Sheets can be curved and crimped as required and can also have anti-condensation reverse. A full complement of gutters and flashings are also available manufactured in house and can be delivered nationwide.
Our Cladding Profile Range
METRAC 8-3 “ Corrugated
METRAC 10-3” Corrugated
METRAC 14-3” Corrugated
METRAC C32-1000
METRAC C34-1000
METRAC PP32
Our Cladding Profile Range
METRAC 8-3 “ Corrugated
METRAC 10-3” Corrugated
METRAC 14-3” Corrugated
METRAC C32-1000
METRAC C34-1000
METRAC PP32

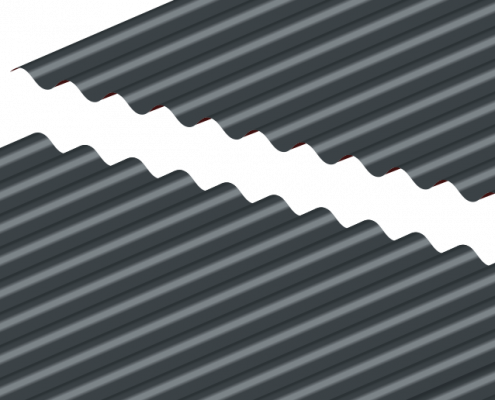

METRAC 8-3 “ Corrugated
METRAC 8-3” Cladding sheet is produced utilising 0.5mm steel with options plain pre-galvanised or with coatings over the galvanised of Plastisol Leathergrain, Polyester, Prisma, PVDF or White Lining Enamel for internal application as a walk on liner.
A shallow profile of only 19mm deep this profile is a very robust tried and tested profile which is used in all market sectors globally. It offers a cover width of 606mm and can be produced in Aluminium also.
- Sheet lengths are available from 500mm – 13500mm
- Option of Drip Stop anti-condensation reverse
- Translucent sheets are available to match this profile in various grades and classes.
- Foam fillers to suit the profile
- Flashings, fascia, rainwater pipes and gutters can be produced to match the colour
METRAC 8-3 “ Corrugated
METRAC 8-3” Cladding sheet is produced utilising 0.5mm steel with options plain pre-galvanised or with coatings over the galvanised of Plastisol Leathergrain, Polyester, Prisma, PVDF or White Lining Enamel for internal application as a walk on liner.
A shallow profile of only 19mm deep this profile is a very robust tried and tested profile which is used in all market sectors globally. It offers a cover width of 606mm and can be produced in Aluminium also.
- Sheet lengths are available from 500mm – 13500mm
- Option of Drip Stop anti-condensation reverse
- Translucent sheets are available to match this profile in various grades and classes.
- Foam fillers to suit the profile
- Flashings, fascia, rainwater pipes and gutters can be produced to match the colour
METRAC 10-3” Corrugated
METRAC 10-3” Cladding sheet is produced utilising 0.7mm steel with options plain pre-galvanised or with coatings over the galvanised of Plastisol Leathergrain, Polyester, Prisma, PVDF or White Lining Enamel for internal application as a walk on liner.
A shallow profile of only 19mm deep this profile is a very robust tried and tested profile which is used in all market sectors globally. It offers a cover width of 762mm and can be produced in Aluminium also.
- Sheet lengths are available from 500mm – 13500mm
- Option of Drip Stop anti-condensation reverse
- Translucent sheets are available to match this profile in various grades and classes.
- Foam fillers to suit the profile
- Flashings, fascia, rainwater pipes and gutters can be produced to match the colour
METRAC 10-3” Corrugated
METRAC 10-3” Cladding sheet is produced utilising 0.7mm steel with options plain pre-galvanised or with coatings over the galvanised of Plastisol Leathergrain, Polyester, Prisma, PVDF or White Lining Enamel for internal application as a walk on liner.
A shallow profile of only 19mm deep this profile is a very robust tried and tested profile which is used in all market sectors globally. It offers a cover width of 762mm and can be produced in Aluminium also.
- Sheet lengths are available from 500mm – 13500mm
- Option of Drip Stop anti-condensation reverse
- Translucent sheets are available to match this profile in various grades and classes.
- Foam fillers to suit the profile
- Flashings, fascia, rainwater pipes and gutters can be produced to match the colour
METRAC 14-3” Corrugated
METRAC 14-3” Cladding sheet is produced utilising 0.5mm steel with options plain pre-galvanised or with coatings over the galvanised of Plastisol Leathergrain, Polyester, Prisma, PVDF or White Lining Enamel for internal application.
A shallow profile of only 19mm deep this profile is a very robust tried and tested profile which is used in all market sectors globally. It offers a cover width of 990mm and can be produced in Aluminium also.
- Sheet lengths are available from 500mm – 13500mm
- Option of Drip Stop anti-condensation reverse
- Translucent sheets are available to match this profile in various grades and classes.
- Foam fillers to suit the profile
- Flashings, fascia, rainwater pipes and gutters can be produced to match the colour
METRAC 14-3” Corrugated
METRAC 14-3” Cladding sheet is produced utilising 0.5mm steel with options plain pre-galvanised or with coatings over the galvanised of Plastisol Leathergrain, Polyester, Prisma, PVDF or White Lining Enamel for internal application.
A shallow profile of only 19mm deep this profile is a very robust tried and tested profile which is used in all market sectors globally. It offers a cover width of 990mm and can be produced in Aluminium also.
- Sheet lengths are available from 500mm – 13500mm
- Option of Drip Stop anti-condensation reverse
- Translucent sheets are available to match this profile in various grades and classes.
- Foam fillers to suit the profile
- Flashings, fascia, rainwater pipes and gutters can be produced to match the colour

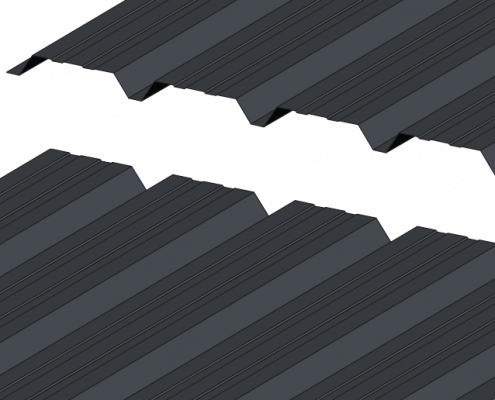

METRAC C32-1000
METRAC C32-1000 cladding sheet is produced utilising 0.5mm steel with options plain pre-galvanised or with coatings over the galvanised of Plastisol Leathergrain, Polyester, Prisma, PVDF or White Lining Enamel for internal application.
32mm deep and providing a metre cover the sheets are lapped to the sides will capillary groves providing added protection to water ingress. The pitch of the profiles are 200mm and a trough of 128mm with option of swages for extra strength
- Sheet lengths are available from 500mm – 13500mm
- Option of Drip Stop anti-condensation reverse
- Translucent sheets are available to match this profile in various grades and classes.
- Foam fillers to suit the profile
- Flashings, fascia, rainwater pipes and gutters can be produced to match the colour
METRAC C32-1000
METRAC C32-1000 cladding sheet is produced utilising 0.5mm steel with options plain pre-galvanised or with coatings over the galvanised of Plastisol Leathergrain, Polyester, Prisma, PVDF or White Lining Enamel for internal application.
32mm deep and providing a metre cover the sheets are lapped to the sides will capillary groves providing added protection to water ingress. The pitch of the profiles are 200mm and a trough of 128mm with option of swages for extra strength
- Sheet lengths are available from 500mm – 13500mm
- Option of Drip Stop anti-condensation reverse
- Translucent sheets are available to match this profile in various grades and classes.
- Foam fillers to suit the profile
- Flashings, fascia, rainwater pipes and gutters can be produced to match the colour

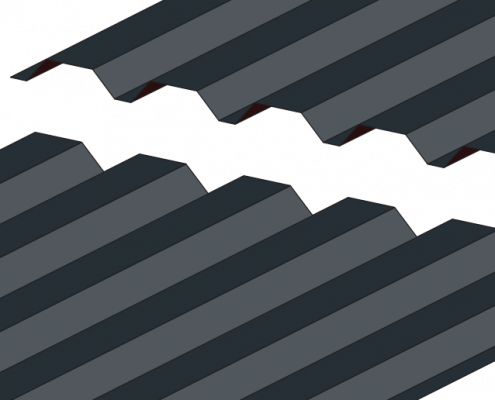

METRAC C34-1000
METRAC C34-1000 Cladding sheet is produced utilising 0.5mm steel with options plain pre-galvanised or with coatings over the galvanised of Plastisol Leathergrain, Polyester, Prisma, PVDF or White Lining Enamel for internal application.
34mm deep and providing a metre cover the sheets are lapped to the sides will capillary groves providing added protection to water ingress. The pitch of the profiles are 166.7mm and a trough of 71mm.
- Sheet lengths are available from 500mm – 13500mm
- Option of Drip Stop anti-condensation reverse
- Translucent sheets are available to match this profile in various grades and classes.
- Foam fillers to suit the profile
- Flashings, fascia, rainwater pipes and gutters can be produced to match the colour
METRAC C34-1000
METRAC C34-1000 Cladding sheet is produced utilising 0.5mm steel with options plain pre-galvanised or with coatings over the galvanised of Plastisol Leathergrain, Polyester, Prisma, PVDF or White Lining Enamel for internal application.
34mm deep and providing a metre cover the sheets are lapped to the sides will capillary groves providing added protection to water ingress. The pitch of the profiles are 166.7mm and a trough of 71mm.
- Sheet lengths are available from 500mm – 13500mm
- Option of Drip Stop anti-condensation reverse
- Translucent sheets are available to match this profile in various grades and classes.
- Foam fillers to suit the profile
- Flashings, fascia, rainwater pipes and gutters can be produced to match the colour

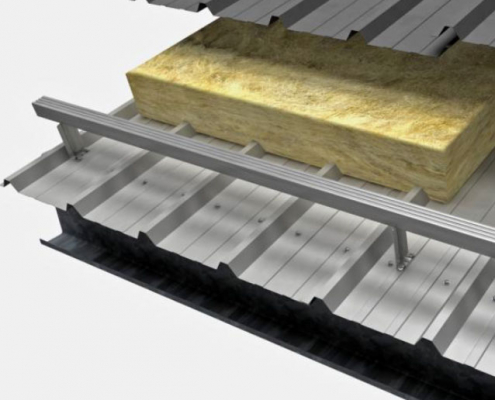

METRAC PP32
Metrac PP32 can be used in a wall application as well as roof. The orientation and colour face is entirely down to you, however typically the wide pan is facing outwards to give a less industrial aesthetic and also to increase the insulation zone behind by 32mm to maximise thermal performance.
Due to a lesser wind and imposed load on walls the product gauge is usually reduced to 0.5mm when cladding in steel. If aluminium, 0.9mm is used on both walls and roofs to provide adequate impact resistance.
Max panel length:
Panel length limited by practical handling considerations – typically up to 10m.
METRAC PP32
Metrac PP32 can be used in a wall application as well as roof. The orientation and colour face is entirely down to you, however typically the wide pan is facing outwards to give a less industrial aesthetic and also to increase the insulation zone behind by 32mm to maximise thermal performance.
Due to a lesser wind and imposed load on walls the product gauge is usually reduced to 0.5mm when cladding in steel. If aluminium, 0.9mm is used on both walls and roofs to provide adequate impact resistance.
Max panel length:
Panel length limited by practical handling considerations – typically up to 10m.

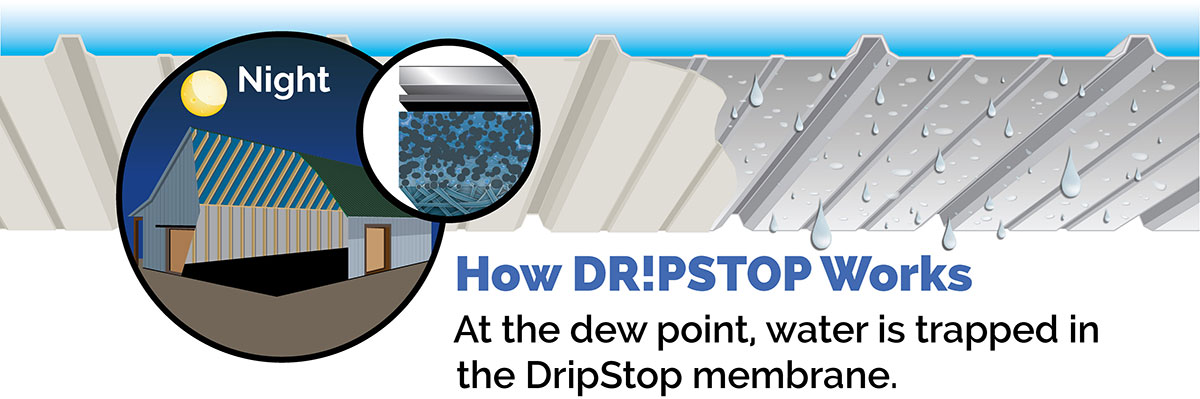

Anti-condensation Application
Controlling Condensation on Profiled Roofing Sheets
When the temperature and humidity conditions reach the dew point, moisture condenses on the underside of the uninsulated metal roof. If there is a lot of condensation, drops of water form and start to fall causing damage to the contents below. The traditional method for dealing with condensation is to try and insulate the roof so that the temperature on the panel never reaches the dew point.
The MR&C solution
The metal roofing sheets with DRIPSTOP anti-condensation felt provides a medium for trapping this moisture in the specially designed pockets formed in the membrane.
DRIPSTOP holds that moisture until conditions go back below the dew point and it is released back into the air in the form of normal humidity.DRIPSTOP anti-condensation felt is self adhesive, and is applied to the metal panel in the roll forming process. As a result, DRIPSTOP arrives at the building site already in place and set to be installed with the roofing panels immediately. The membrane is resistant to ageing, and also provides an additional layer of protection for your metal roof.
Hundreds of millions of square feet of DRIPSTOP condensation protection are in place worldwide. DRIPSTOP has been in every climate condition from Scandinavia/Siberia down to the Greek Isles and Australia. Ideal for most metal cladding systems including box profile roofing sheets, tile effect roofing sheets, steel roofing sheets and curved sheeting.
