METRAC R34-1000

METRAC R34-1000 Roofing sheet is produced utilising 0.7mm steel with options plain pre-galvanised or with coatings over the galvanised of Plastisol Leathergrain, Polyester, Prisma, PVDF or White Lining Enamel for internal application as a walk on liner.

34mm deep and providing a metre cover the sheets are lapped to the sides will capillary groves providing added protection to water ingress. The pitch of the profiles are 166.7mm and a trough of 71mm.

  • Sheet lengths are available from 500mm – 13500mm
  • Option of Drip Stop anti-condensation reverse
  • Translucent sheets are available to match this profile in various grades and classes.
  • Foam fillers to suit the profile
  • Flashings, fascia, rainwater pipes and gutters can be produced to match the colour

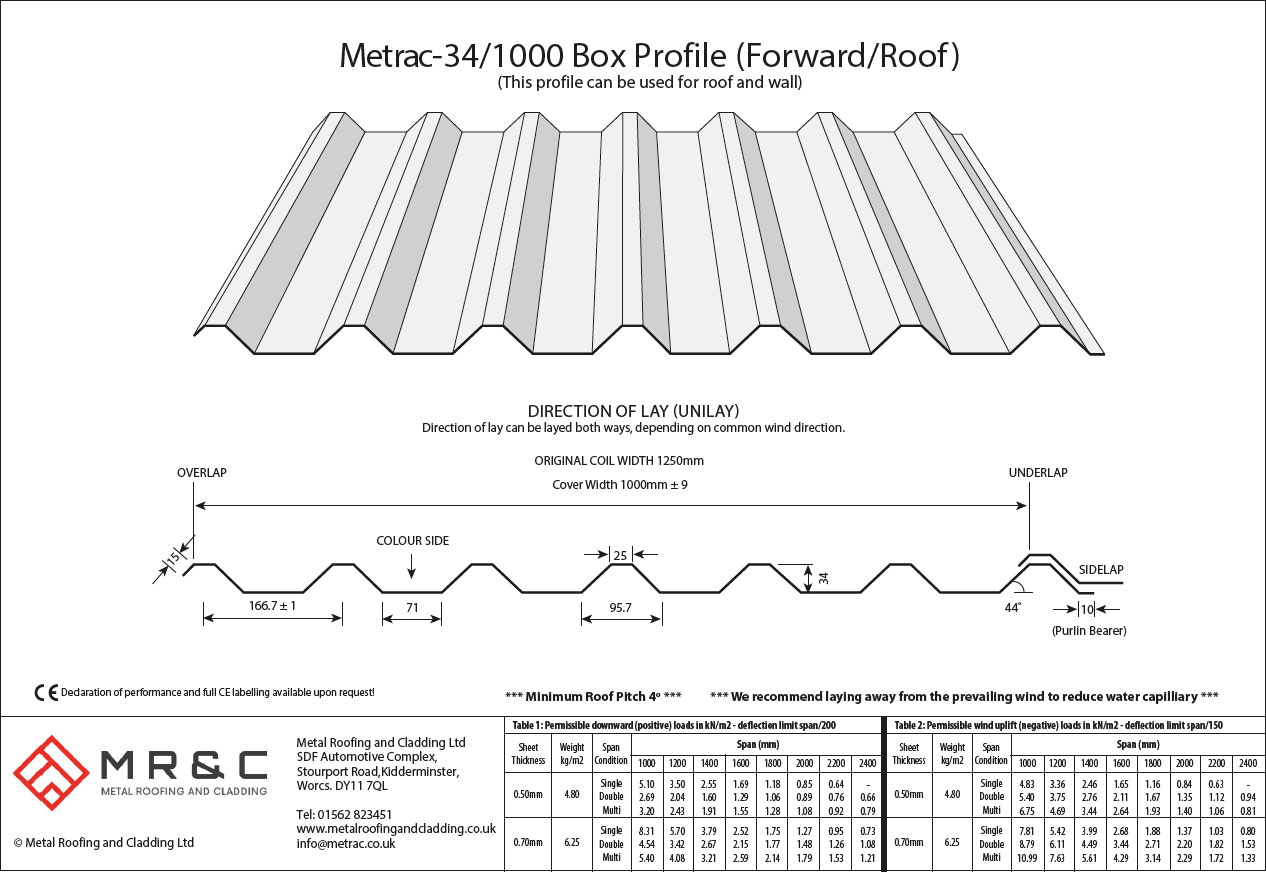

Technical Details
